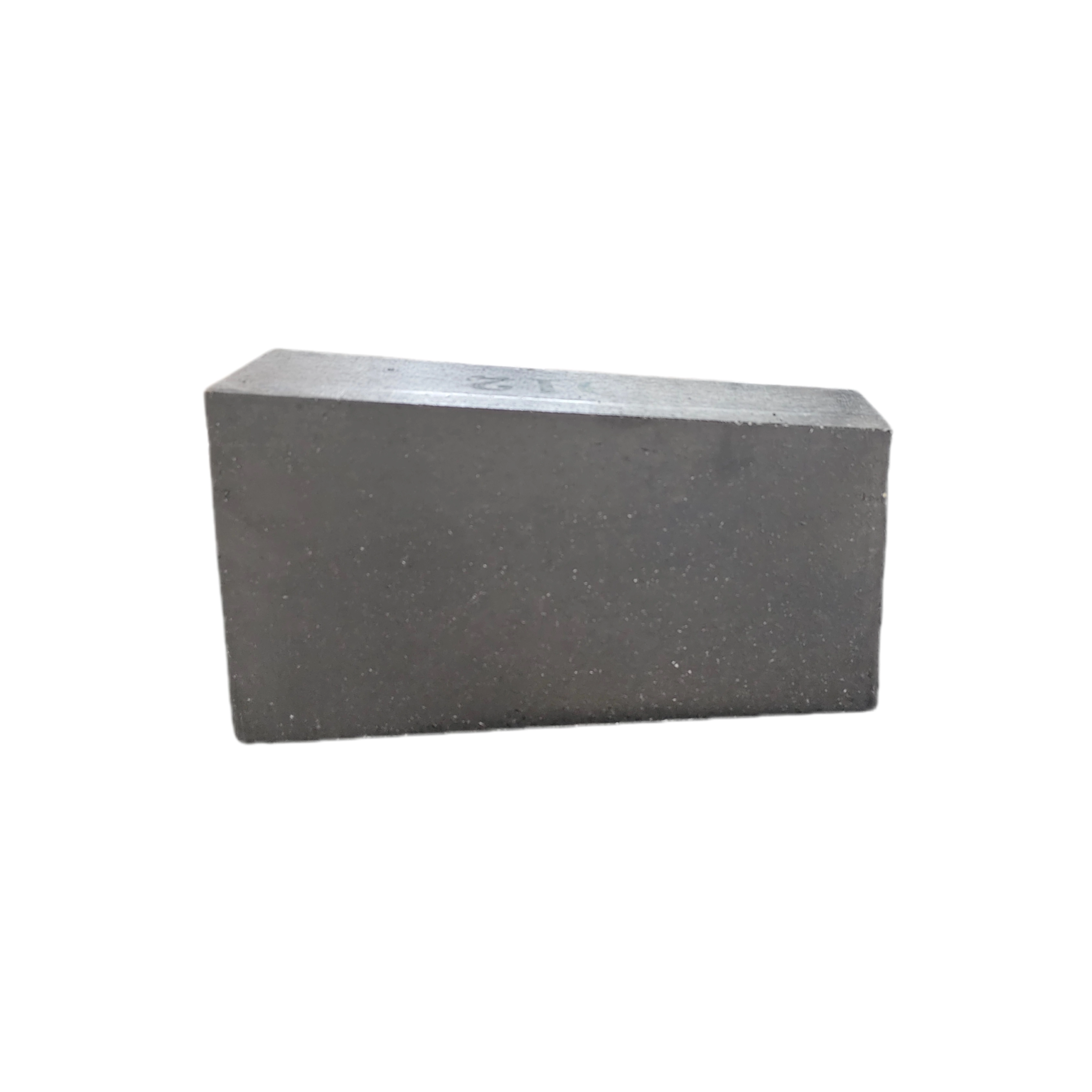

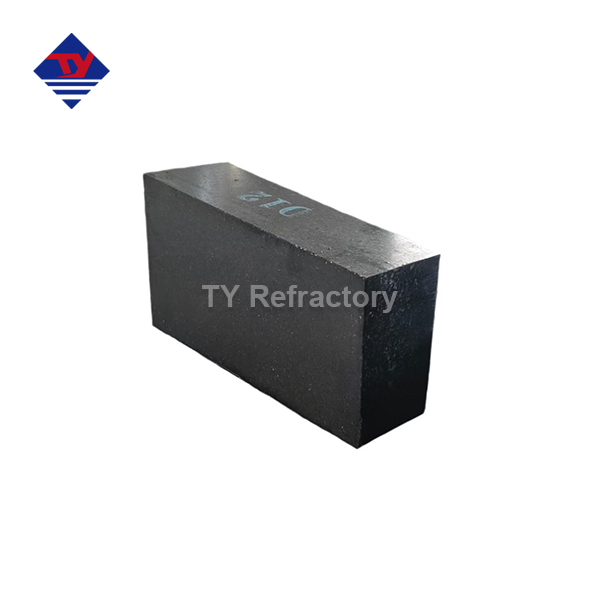

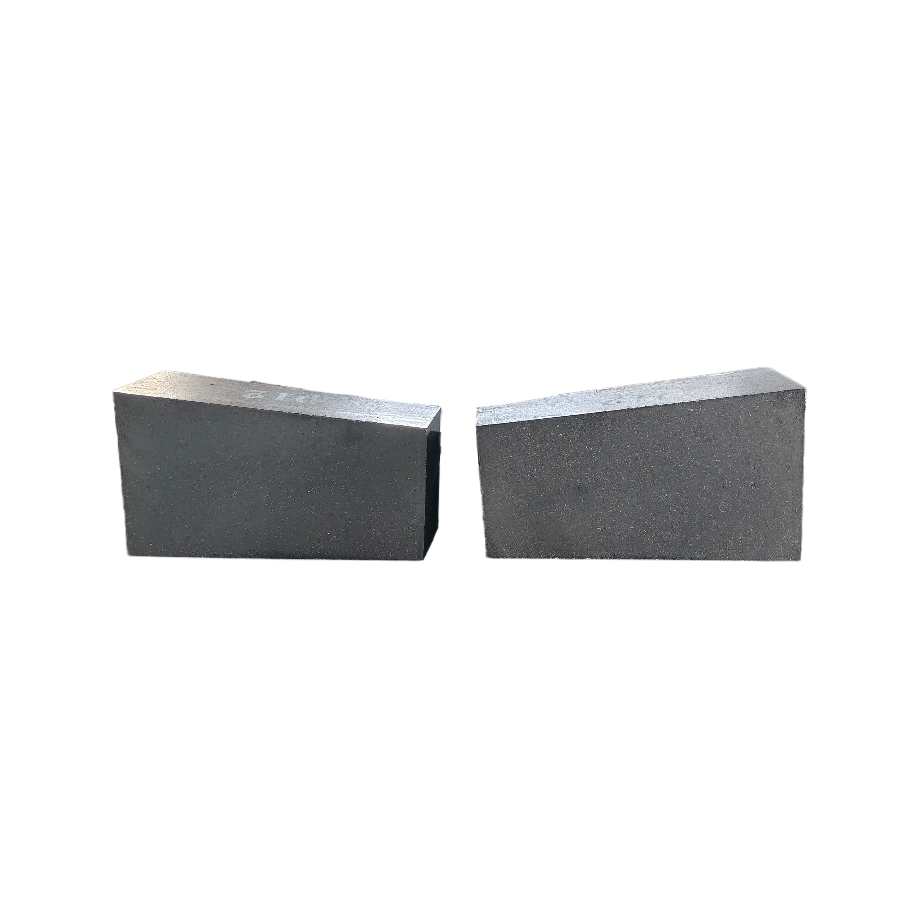

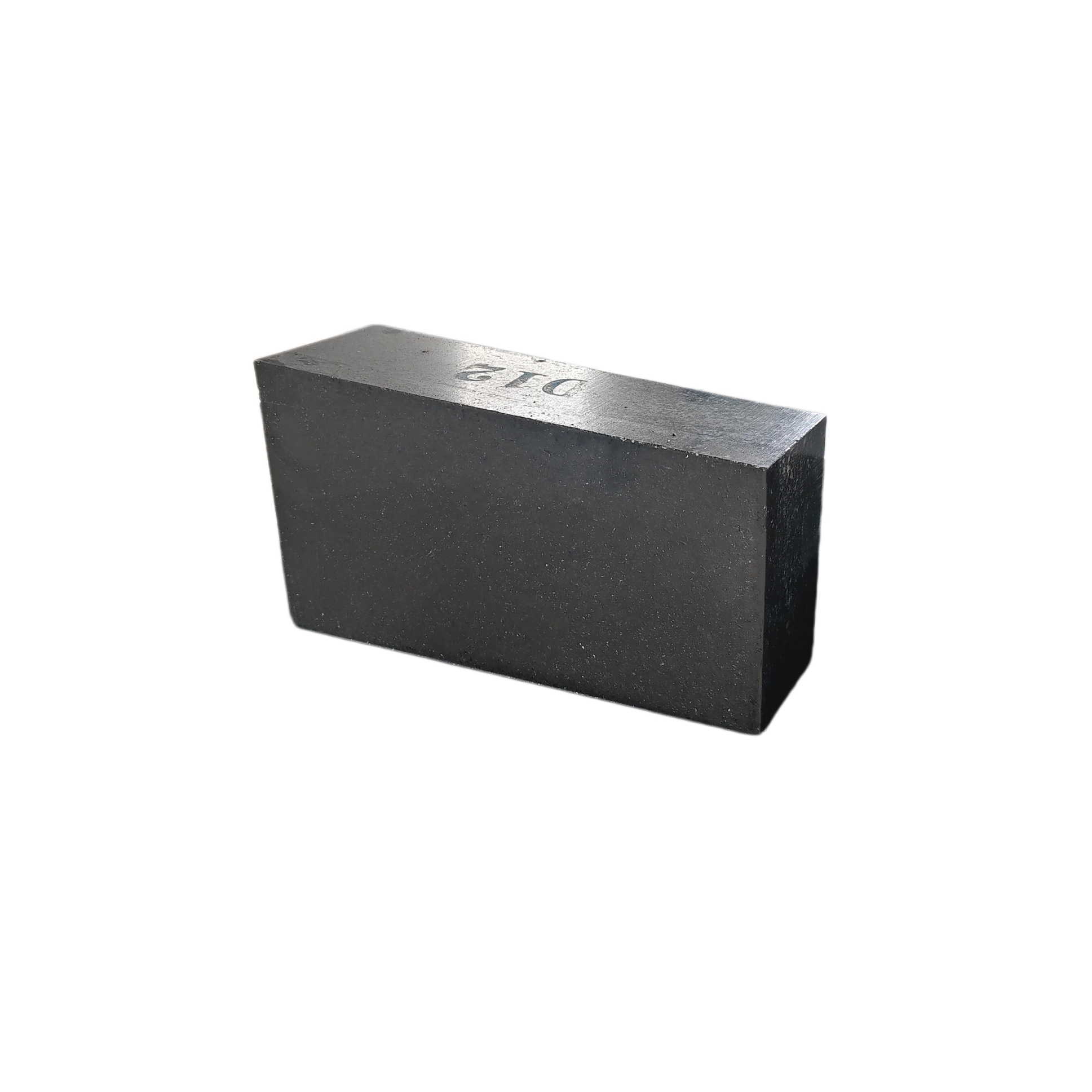

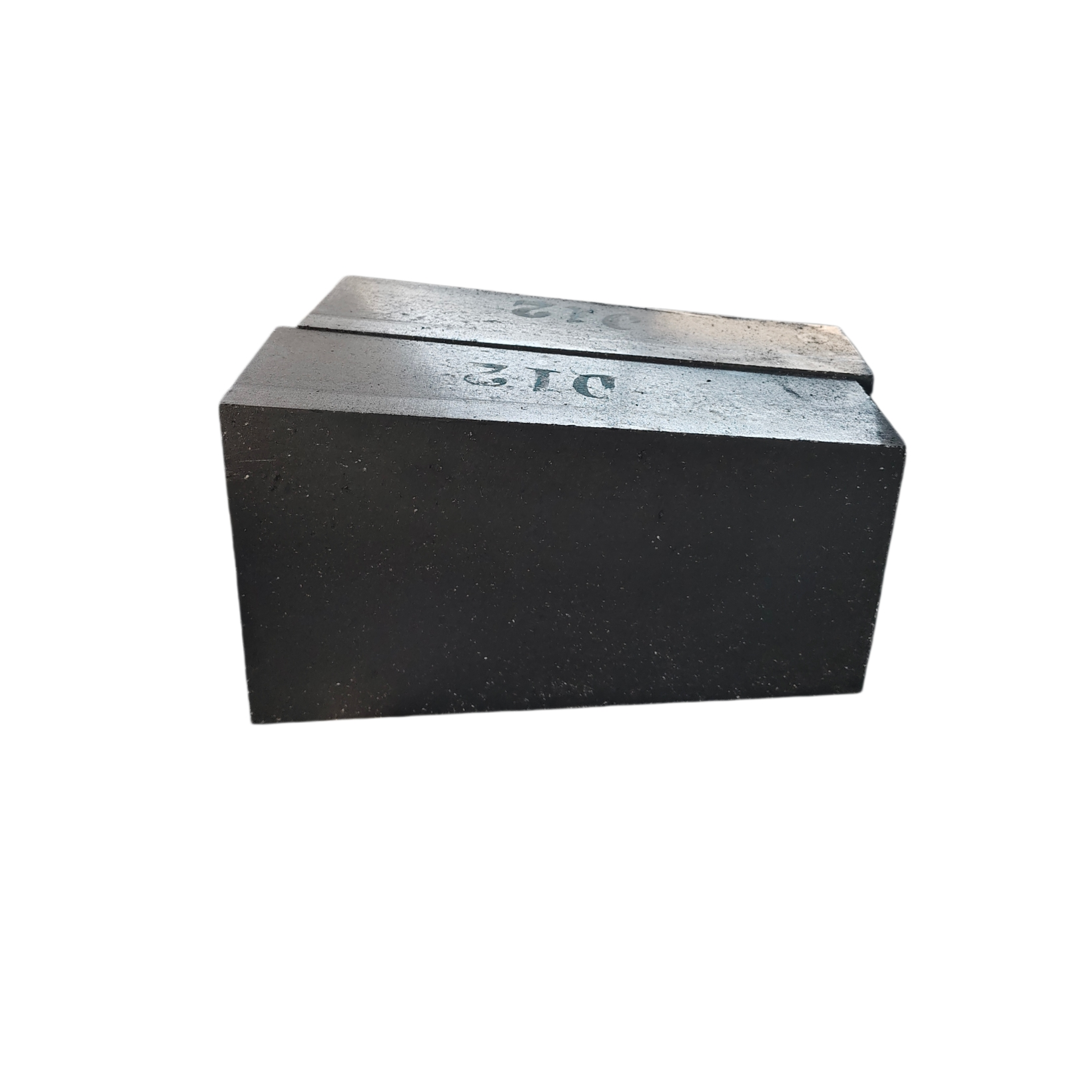

Mullite Silicon Carbide Carbon Brick
Raw materials: Mullite, silicon carbide, graphite and carbon materials
Advantage: The brick has good thermal shock resistance, good abrasion resistance and good slag resistance.
Application: It is mainly used in the iron and steel industry, such as torpedo tanks, hot metal ladles, blast furnace runners, etc.
Mullite Silicon Carbide Carbon Brick - High-Performance Refractory Solution for Extreme Metallurgical Environments
When your operations demand reliable performance under extreme conditions, Mullite Silicon Carbide Carbon Brick delivers proven results. Engineered by TY Refractory with over 30 years of manufacturing expertise since 1986, this advanced composite refractory combines high-purity mullite, silicon carbide, and graphite with high-carbon synthetic resins. Your metallurgical processes benefit from exceptional thermal shock resistance (30+ water cooling cycles), superior slag erosion resistance, and outstanding abrasion performance. With bulk density ranging 2.65-2.85 g/cm³, cold crushing strength exceeding 45 MPa, and apparent porosity below 16%, you get enterprise-grade reliability backed by ISO 9001:2015 certification and over 20 patents.
What Makes This Refractory Material Stand Out?
You confront three basic challenges in cutting edge steelmaking: disastrous warm stun disappointments, seriously chemical disintegration from liquid slag, and basic spalling in torpedo cars and hot metal scoops. Our item understands these torment focuses through brilliantly fabric architecture.
The high-temperature soundness of mullite gives your auxiliary establishment. Silicon carbide includes remarkable warm conductivity and mechanical wear resistance. Crystalline graphite makes a non-wetting surface that avoids liquid metal penetration.
This cooperative energy implies your hard-headed lining withstands the forceful conditions of impact heater runners, torpedo tanks, and hot metal scoops without untimely disappointment.
Technical Specifications That Matter to Your Operations
Understanding the numbers behind performance helps you make informed decisions. Here's what you can expect:
| Property | Specification | Your Benefit |
|---|---|---|
| Bulk Density | 2.65-2.85 g/cm³ | Optimal structural integrity |
| Apparent Porosity | ≤16% | Minimal molten metal infiltration |
| Cold Crushing Strength | ≥45 MPa | Superior mechanical durability |
| Al₂O₃ Content | 55-65% | High refractoriness foundation |
| SiC Content | 10-20% | Enhanced thermal conductivity |
| Fixed Carbon | 5-15% | Excellent slag resistance |
| Thermal Shock Resistance | 30+ cycles | Extended service life |
| Refractoriness Under Load | T0.6 >1650°C | Maintains strength at operating temperatures |
These specifications comply with international standards including ISO 1109 and ASTM C27, ensuring consistent performance across your operations.
Where You'll See Real-World Performance?
Your iron and steel operations require materials that perform reliably day after day. Mullite Silicon Carbide Carbon Brick excels in:
Torpedo Cars: Transport molten iron safely with service life reaching 800-1,200 heats, significantly outperforming standard alumina bricks.
Hot Metal Ladles: The non-wetting carbon surface prevents slag adhesion and penetration during iron pretreatment.
Blast Furnace Runners: Handle high-velocity molten metal flow without excessive wear or chemical attack.
TY Refractory's comprehensive lifecycle service model means you're supported from design through construction to maintenance. Our 24/7 technical team ensures minimal downtime when you need assistance most.
Why Silicon Carbide and Carbon Work Together?
You might ponder why this particular combination conveys prevalent comes about. Silicon carbide drastically progresses warm conductivity, making a difference your lining oversee fast temperature changes without splitting. It too improves mechanical wear resistance, decreasing spalling risk.
The carbon component makes that significant non-wetting boundary. Liquid slag and press cannot enter the brick's pores, halting inner disintegration some time recently it begins. This defensive instrument amplifies your headstrong lining's operational life significantly.
Together with mullite's high-temperature soundness, you get a hard-headed that handles different challenges at the same time or maybe than compromising on any single property.
Quality You Can Trust
TY Refractory's commitment to quality goes beyond manufacturing. As a National High-Tech Enterprise with a provincial-level R&D Center, we've developed rigorous quality assurance protocols.
Our multi-stage inspection includes ultrasonic flaw detection to ensure internal structural homogeneity, carbon analysis via induction furnace methods, and oxidation resistance testing at 1400°C. We maintain dimensional tolerances within ±1mm for tight joints that prevent erosion during operation.
These processes align with GB/T 5072 and ISO 1927 standards, giving you confidence in long-term durability. Our certifications—ISO 9001:2015, ISO 14001:2016, and OHSAS 18001:2011—demonstrate our systematic approach to quality, environmental responsibility, and safety.
Frequently Asked Questions
Why is SiC added to the mullite-carbon matrix?
Silicon carbide significantly enhances thermal conductivity and mechanical wear resistance. This addition effectively reduces your risk of structural spalling during thermal cycling.
How does carbon content affect slag resistance?
The graphite creates a non-wetting surface that prevents molten slag and iron from penetrating the brick's pores. This mechanism stops internal erosion and extends service life.
What service life can I expect in a torpedo car?
Depending on your maintenance practices and throughput, you'll typically see 800 to 1,200 heats. This significantly exceeds standard alumina brick performance.
Does this brick require special storage conditions?
Yes. Store the product in a dry, ventilated environment to prevent hydration of the resin bond and oxidation of carbon components.
Can I use this material in oxidizing atmospheres?
While designed primarily for reducing or neutral environments, our high-quality versions include antioxidants like aluminum or silicon powder. These protect the carbon from oxidation up to certain temperature thresholds.
Proven Performance Across Global Markets
Your peers in major steel groups trust TY Refractory for their critical applications. We've served long-term partnerships with Baowu, CITIC Special Steel, and Shagang in China. Our products perform reliably in Russia, India, Turkey, Vietnam, and beyond.
This global recognition comes from proven results through multiple generations of furnace operations. When you choose our product, you join a network of satisfied customers who've experienced extended campaign life and reduced maintenance costs.
Partner with Experience and Innovation
Since our involvement in the landmark localization of refractories for Shanghai Baosteel, we've continuously improved our formulations and service delivery. Our foundation with LuoYang Refractory Research College ensures you benefit from cutting-edge research translated into practical solutions.
Our philosophy—"Creating branded products and seeking sustainable development"—drives everything we do. You're not just buying a refractory material. You're gaining a partner committed to your operational success.
Contact Us
Ready to improve your Mullite Silicon Carbide Carbon Brick refractory performance? Reach out to our technical team at baiqiying@tianyunc.com for personalized consultation and solutions.
