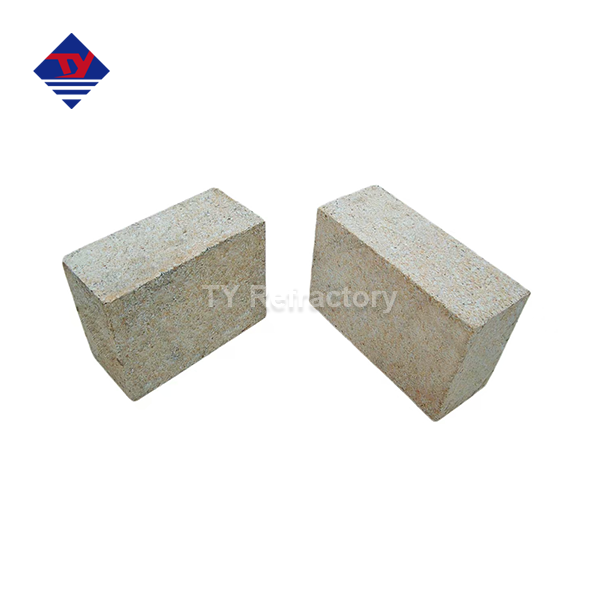

Low Porosity Fire Brick
Raw Material:High alumina and pyrogemstones
Advantages: It has low apparent porosity, strong resistance to penetration and erosion
Application:It is suitable for carbon roasting furnaces, blast furnaces, hot blast furnaces, chemical kilns, etc., and is used as kiln lining
Low Porosity Fire Brick: Dense, Durable Refractory Solutions for Heavy-Duty Furnaces
When your industrial furnaces face molten slag penetration and chemical erosion, you need more than standard refractories. Low Porosity Fire Brick from TY Refractory delivers exceptional protection with apparent porosity ≤15% and bulk density ≥2.35 g/cm³. Engineered from high alumina and premium pyrogemstones, our bricks offer cold crushing strength exceeding 60 MPa and refractoriness under load above 1450°C. With over 30 years of manufacturing expertise since 1986, we've perfected high-pressure molding and high-temperature firing processes that create an impermeable barrier against corrosive agents—extending your furnace campaign life significantly.
Why Choose Our Dense Fire Brick Solutions?
Your heater linings request materials that stand up to the harshest conditions. Our fire bricks unravel basic operational challenges you confront daily.
Superior Disintegration Protection
The thick microstructure squares liquid materials from entering the brick network. You get extraordinary resistance to acidic slags and antacid vapor attack—problems that annihilate standard refractories with 20-25% porosity.
Extended Benefit Life
Higher thickness implies way better volume steadiness. Your brick work remains intaglio longer, lessening downtime and substitution costs. Our bricks show negligible crawl at raised temperatures, keeping up basic keenness all through amplified campaigns.
Proven Performance
As a certified National High-Tech Endeavor, we've provided major steel bunches counting Baowu and CITIC Uncommon Steel. Our item innovation has been demonstrated through numerous eras of heater operations in requesting situations.
Technical Specifications
| Parameter | Standard Grade | Premium Grade |
|---|---|---|
| Apparent Porosity (AP) | ≤17% | ≤12-15% |
| Bulk Density (BD) | ≥2.35 g/cm³ | ≥2.40 g/cm³ |
| Cold Crushing Strength (CCS) | ≥50 MPa | ≥70 MPa |
| Refractoriness Under Load (0.2 MPa) | ≥1420°C | ≥1470°C |
| Al₂O₃ Content | 42-46% | 46-48% |
| Fe₂O₃ Content | <1.5% | <1.2% |
Industrial Applications
Carbon Roasting Furnaces
Your roasting operations require materials that handle chemical-heavy environments. Our bricks create impermeable barriers against carbon compounds and volatile substances.
Blast Furnace Linings
In hearth and belly zones, our Low Porosity Fire Brick withstands extreme pressure from molten iron and slag. The dense structure prevents infiltration that causes structural spalling in ordinary refractories.
Hot Blast Stoves
Combustion chambers demand materials that maintain thermal efficiency. Our bricks handle high-velocity airflow and temperature fluctuations while providing excellent heat storage capacity.
Chemical Kilns
When facing corrosive gases and liquids, you need protection. The minimal pore volume stops aggressive chemicals from penetrating, drastically extending maintenance intervals.
Our Complete Service Advantage
We don't just manufacture bricks—we partner with you for success.
Design-Construction-Maintenance Package
Our technical team works with you from initial furnace design through installation and ongoing support. We understand your operational challenges because we've solved them for decades.
24/7 Technical Support
Furnace issues don't wait for business hours. Neither do we. Our dedicated team ensures rapid response to minimize your downtime.
Quality You Can Trust
With ISO 9001:2015, ISO 14001:2016, and OHSAS 18001:2011 certifications, plus over 20 patents from our provincial R&D Center, quality is built into every brick we produce.
Frequently Asked Questions
What makes the products different from standard fireclay bricks?
Standard fireclay bricks have 20-25% porosity, acting like sponges for molten materials. Our product maintains porosity below 15%, creating an almost impermeable barrier. This dramatically reduces slag penetration and chemical attack—the leading causes of premature lining failure in your furnaces.
How long do these bricks typically last in blast furnace applications?
Service life depends on operating conditions, but our dense bricks significantly outlast standard refractories. The impermeable matrix prevents the structural degradation that shortens campaign life. Many customers report 30-50% longer service intervals compared to conventional materials.
Can these bricks handle thermal cycling in glass kilns?
Absolutely. The dense structure resists alkali vapor attack and thermal shock common in glass production. High bulk density provides thermal inertia that stabilizes temperature fluctuations, preventing the "shelling" problems you might experience with porous refractories.
What quality standards do your bricks meet?
Our production adheres to ASTM C20 for porosity and density, ASTM C133 for crushing strength, and GB/T 17912 for dense refractory standards. Each batch undergoes rigorous testing before shipment.
Do you provide installation support?
Yes. Our comprehensive service includes design consultation, construction guidance, and post-installation maintenance. We've successfully completed projects for major steel groups and export to Russia, India, Turkey, and Vietnam.
Contact Us
Ready to extend your Low Porosity Fire Brick furnace campaign life? Email us at baiqiying@tianyunc.com for technical specifications and customized solutions.
